400AH Enerdrive Off-Grid Lithium Package

Description:

400AH Enerdrive Off-Grid Lithium Package

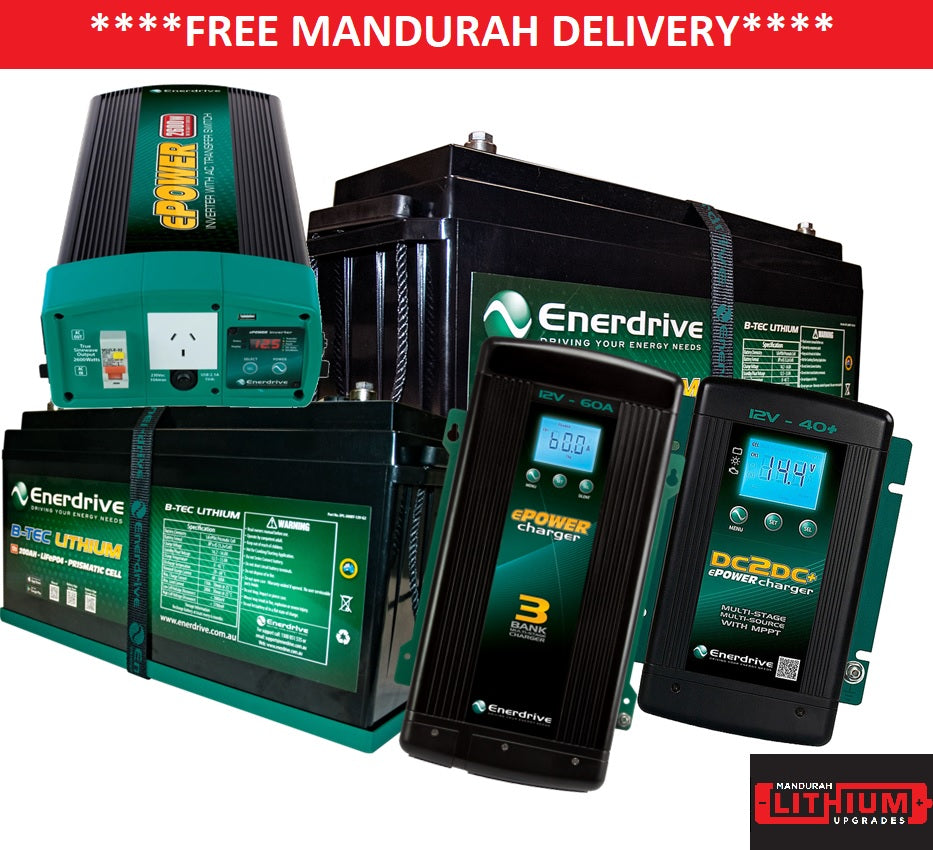

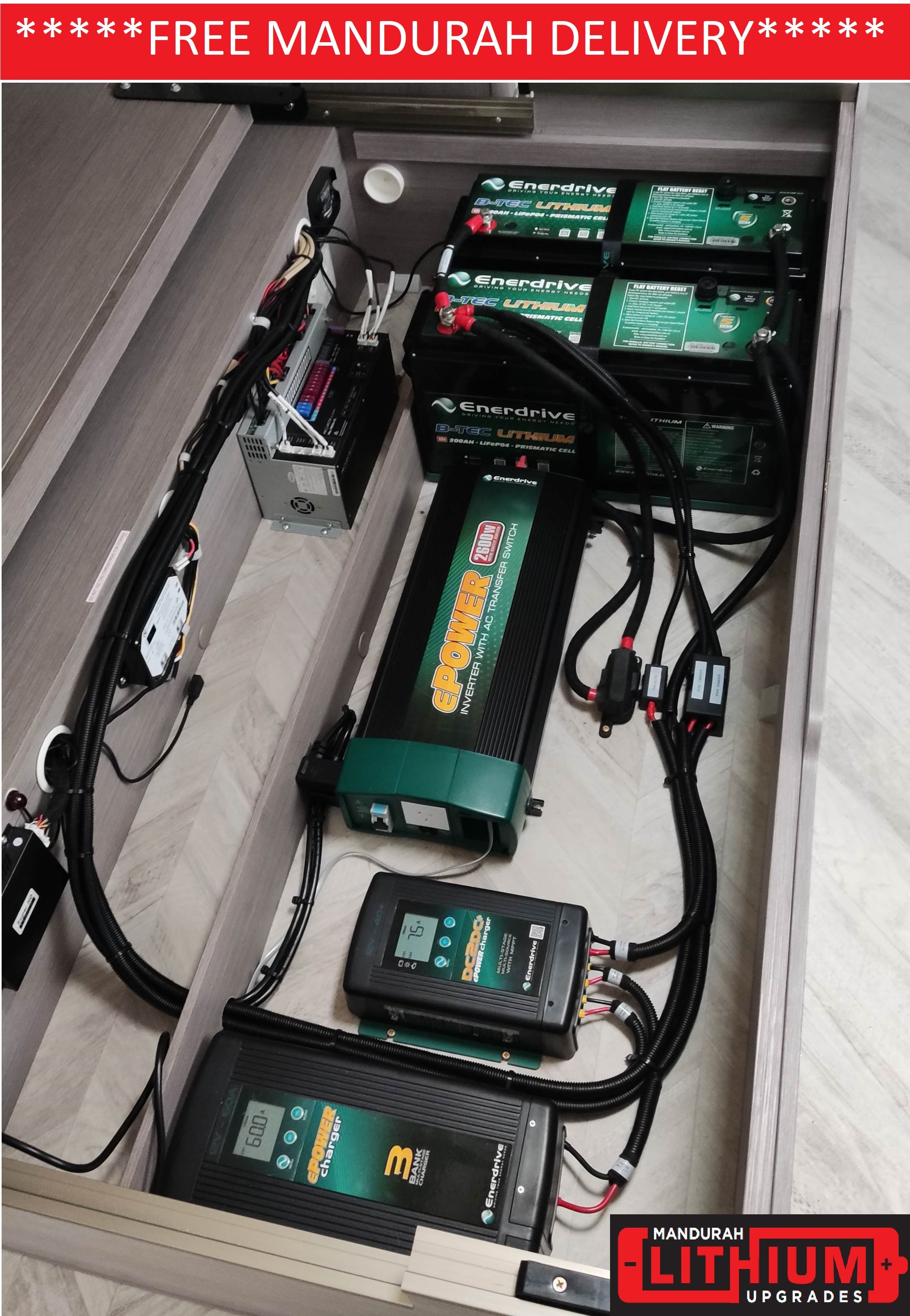

This Enerdrive Off Grid Lithium Package includes:

2x Enerdrive 200AH B-TEC Lithium Batteries

1x Enerdrive 40A DCDC charger

1x Enerdrive 60A 3 Bank 240v charger

1x Enerdrive 2600w inverter with 240v AC transfer switch

This package is for those who meet the following conditions:

1. Wanting to upgrade a caravan to lithium off grid capabilities

2. Plans to stay off grid most of the time while travelling

3. Has roof solar up to 750w

4.  Looking to save weight

5. Wanting to monitor the battery State Of Charge SOC%, volts and amps coming in and out of the lithium batteries.

6. Wanting 240v appliances like Microwave, A/C and coffee machine to work off grid

7. Wanting to bypass the existing caravan power management system

If you are wanting reliable 12v and 240v power, decreased weight and efficient charging, then this Off Grid Package is for you.

By replacing a typical 2x 120AH AGM caravan battery setup with two 200AH lithium batteries, you are saving 30KG in weight.

400AH of lithium batteries has the equivalent of 720AH of AGM or lead acid battery usable power.

The Enerdrive 2600w inverter with AC Transfer Switch has the following features:

Built in RCD switch for added safety

A remote on/off display that can be mounted anywhere in the caravan for easy access

The AC transfer switch part of the inverter must be installed by a qualified 240v Electrician.

No need to touch live 240v wires to power up your caravan off grid. This unit gives you instant 240v power to your whole van with the push of a button

The Enerdrive 2600w inverter allows you to run the following 240v appliances off grid:

Microwave

Coffee Machine

Air Conditioners on most caravans 2018+ year models (dometic etc)

Kettles

Toasters

Multiple 240v appliances at once

If in doubt, check the wattage rating on all 240v appliances to see if it is under 2600w.

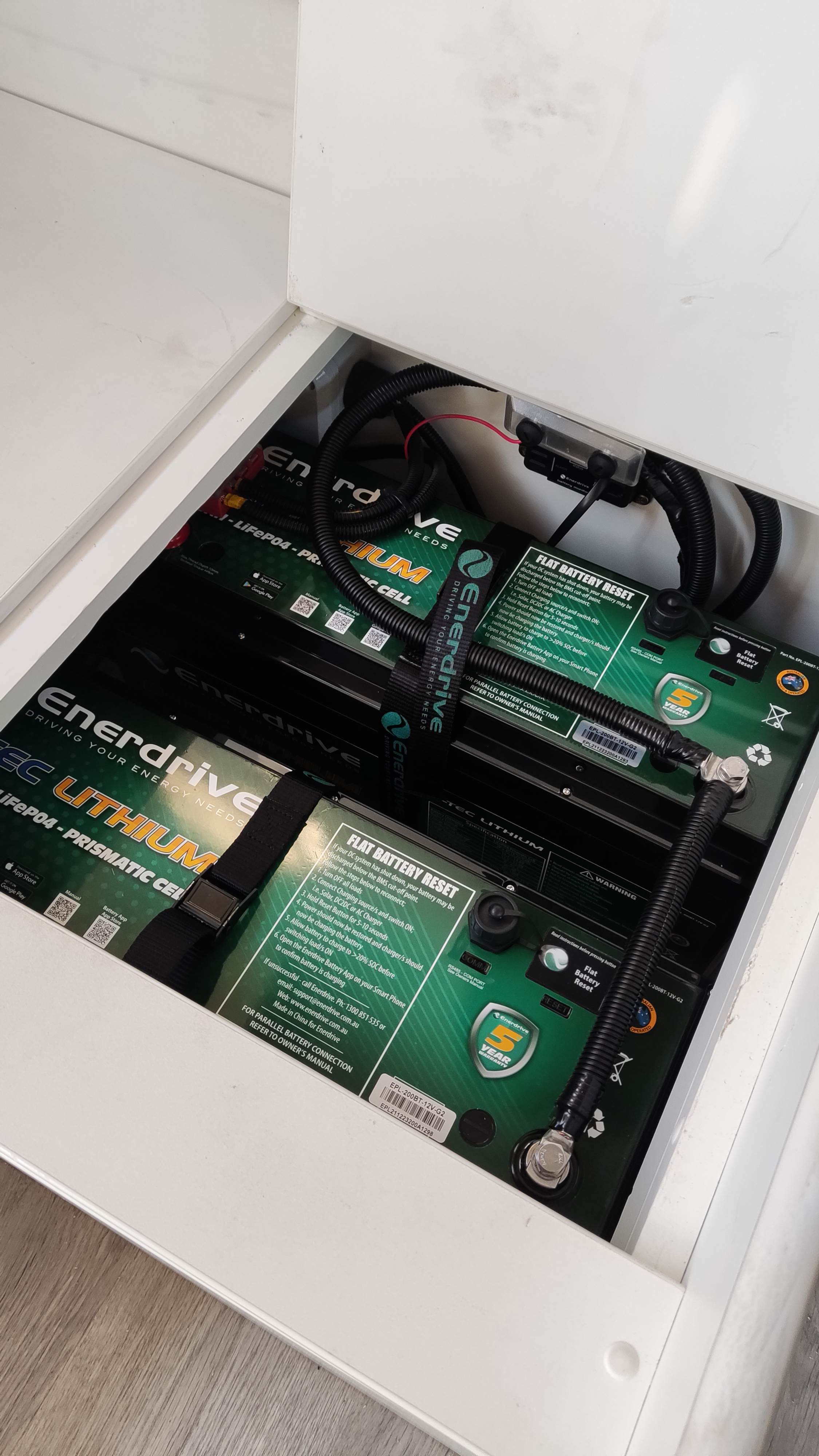

The Enerdrive 200AH B-Tec lithium batteries have built in bluetooth for easy monitoring of battery State Of Charge SOC%

 There are a few reasons to bypass the existing caravan power management system. Whether its a BM-Pro, Projecta PM300 or Redarc Management 30, they are all good units for basic power requirements, but very restrictive for charging large amounts of lithium. These units are rated only up to 30A from any input source, 12v alternator, solar or 240v. So if you have 700w of solar and your at a caravan park, these units only accept 240v charging and cut out all of your solar! When we install both the Enerdrive 40A DCDC and the Enerdrive 60A 3 Bank 240v chargers, not only are you getting lithium charge profile charging, but up to 100A charging input at once.

This is extremely important for recharging your lithium batteries as efficient as possible.

Triple your power and half your weight with a lithium battery upgrade from Mandurah Lithium Upgrades
