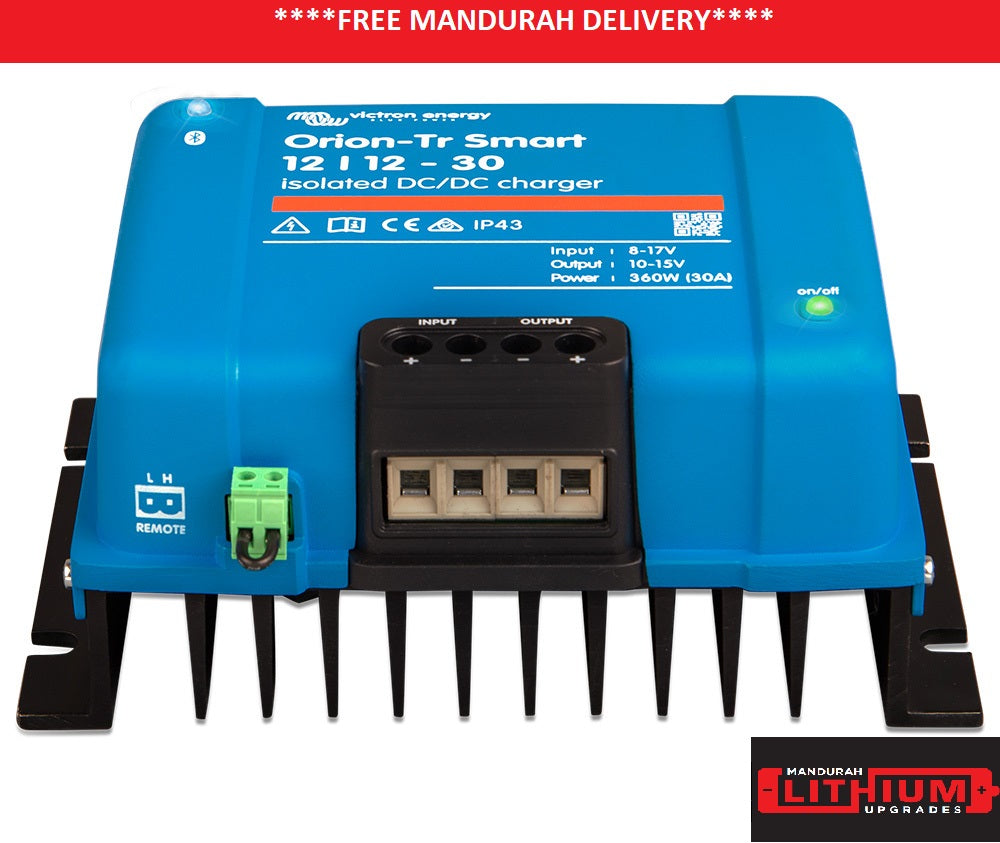

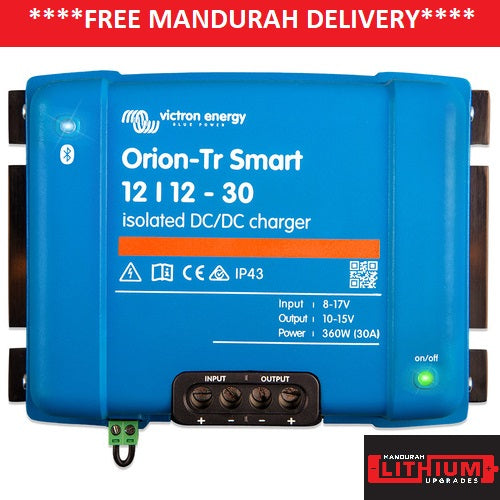

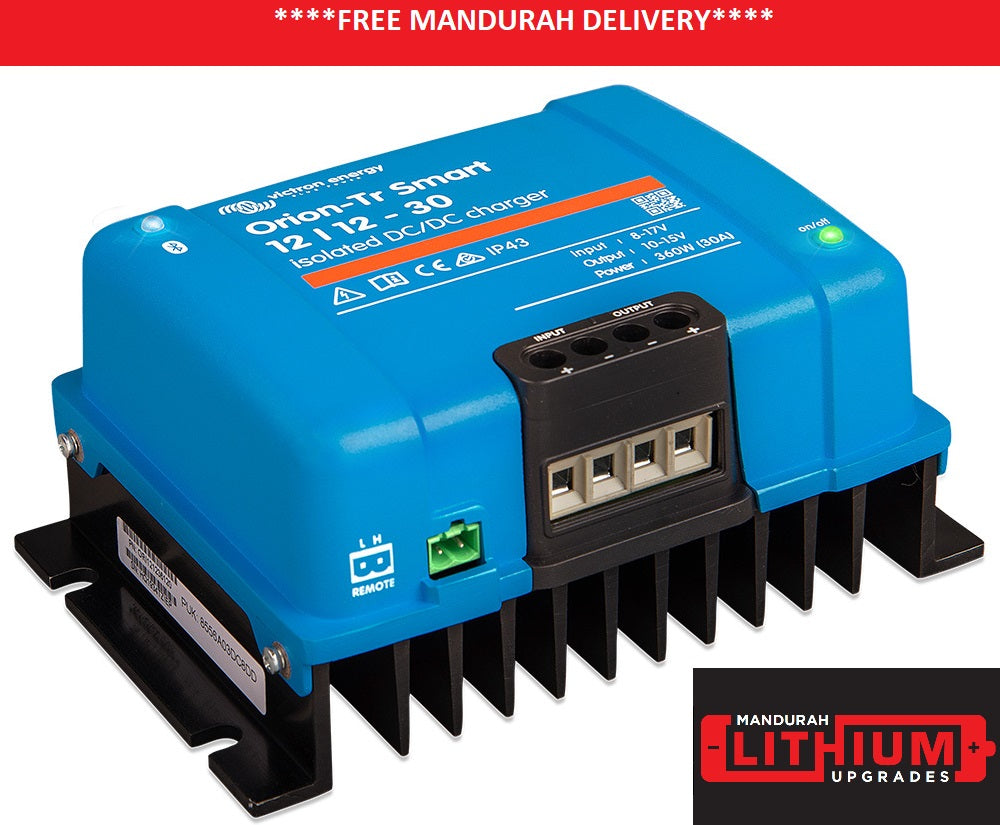

VICTRON Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger
Mandurah Lithium Upgrades is your local Victron stockist. The Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger is...
- $380.00
-
- $380.00
- Unit price
- per
Subtotal:
$380.00
10 customers are viewing this product
Free Returns
Learn More.
Description
xMandurah Lithium Upgrades is your local Victron stockist.
The Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger is only recommended for a few specific situations:
1. You already have a dedicated Victron 30A or 50A solar controller.
2. You are wanting to maximise charging efficiency to an aux battery in the rear of a 4x4 or in a caravan/ camper trailer that does NOT have solar.
3. You have or are planning to have more than 300AH of lithium batteries and want to dedicate solar and alternator charging on separate devices.
Once you go above 300AH of lithium batteries, its important that you maximise charging from all 3 sources: 240v, solar and alternator 12v. All DCDC chargers that have solar and alternator inputs will choose one input or the other up to the units maximum amp rating. So this can be a weak point for a large array of lithium batteries, because as you are driving, all of your solar is cut out and alternator 12v is prioritized, or vice versa.
We recommend buying our Victron 30A or 50A solar controller with this unit if you meet the above criteria.
You may also want to consider our Enerdrive 40A DCDC charger that does both alternator plus solar input up to 40Amps.
Specifications:
The Orion DC-DC charger is used in dual battery systems and is suitable for charging both lead acid and lithium batteries in high temperatures [upto 55° C with full rated output upto 40° C]
Designed to be used as a power supply or a battery charger, the Orion charger, with adaptive three stage charging will safeguard the long-term health of your batteries while delivering a controlled charge that ensures a 100% charge is reached.
The Victron Orion charger is ‘Smart Alternator Compatible’ and in addition can be set to supply power only when the engine is running, thanks to the unique inbuilt engine shutdown detection feature.
Other features include:
- Bluetooth Smart Enabled
- Fully Programable
- Input Voltage Lock-out
- Remote on-off
- Short Circuit Proof
- High Temperature Protection
| Power Supply Set up | Charger Mode Set up |
 |
 |
|
THREE STAGE CHARGING Stage One – Bulk or Boost – As much current as possible is delivered in order to rapidly recharge the batteries to about 80%. Stage Two – Absorption – When the battery reaches its final charging voltage, known as its absorption voltage the charge allows the current to taper off as the battery nears a full charge. Stage Three – Float – At this stage float voltage is applied which is enough to retain a full charge but controlled to prevent overcharging. |
